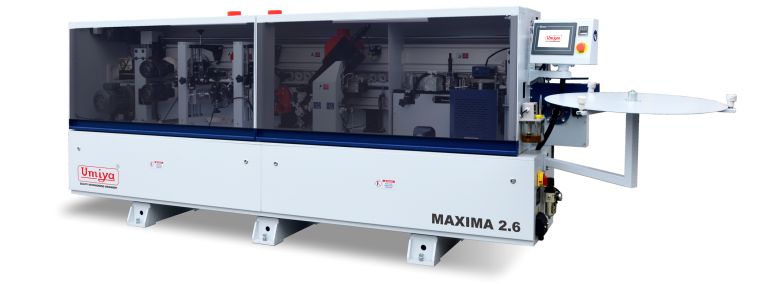

AUTOMATIC EDGE BANDER MAXIMA 2.6 (MAXIMA SERIES)

AUTOMATIC EDGE BANDER MAXIMA 2.6 (MAXIMA SERIES) is a compact and efficient automatic edge banding machine designed for precise edge finishing and smooth woodworking performance. With reliable edge bonding, accurate trimming, and durable industrial construction, it delivers clean and professional finishing for modular furniture and panel processing applications.

Technical Specifications

Specification Table

Model	MAXIMA 4.6PCG	MAXIMA 4.6PC	MAXIMA 4.6C	MAXIMA 2.6
Edge material thickness	0.4-3 mm	0.4-3 mm	0.4-3 mm	0.4-3 mm
Board thickness	10-50 mm	10-50 mm	10-50 mm	10-50 mm
Min panel length	≥ 120 mm	≥ 120 mm	≥ 120 mm	≥ 120 mm
Min panel width	≥ 80 mm	≥ 80 mm	≥ 80 mm	≥ 80 mm
Total air pressure	6-8 bar	6-8 bar	6-8 bar	6-8 bar
Feeding speed	10-14 m/min	10-14 m/min	10-14 m/min	14 m/min
Machine power	16.5 hp	14.7 hp	10 hp	8.7 hp
Packing size	53006501200 mm	50006501200 mm	44006501200 mm	33006501200 mm

Comparison Chart

Specification Table

PROCESS:	Separating Agent	Pre-Milling	Bottom Glue Pot	Pressure Roller	End Cutting	Fine Trimming	Corner Rounding	Edge Scraping	Cleaning Agent	Grooving	Buffing
MAXIMA 4.6PCG	✓	✓	✓	3 Nos	✓	✓	✓	✓	✓	✓	✓
MAXIMA 4.6PC	✓	✓	✓	3 Nos	✓	✓	✓	✓	✓	×	✓
MAXIMA 4.6C	×	×	✓	3 Nos	✓	✓	✓	✓	✓	×	✓
MAXIMA 2.6	×	×	✓	3 Nos	✓	✓	×	✓	✓	×	✓

Features

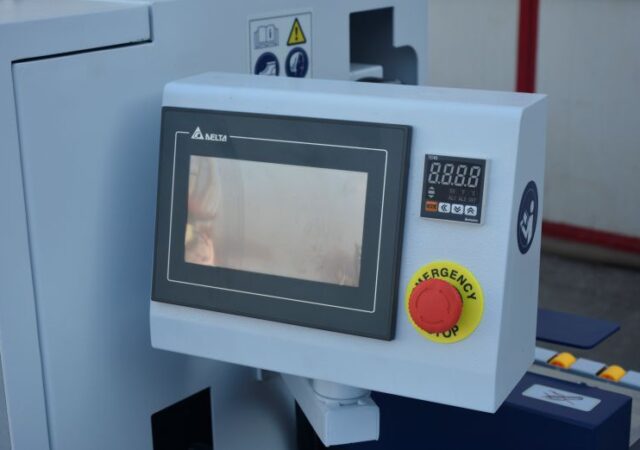

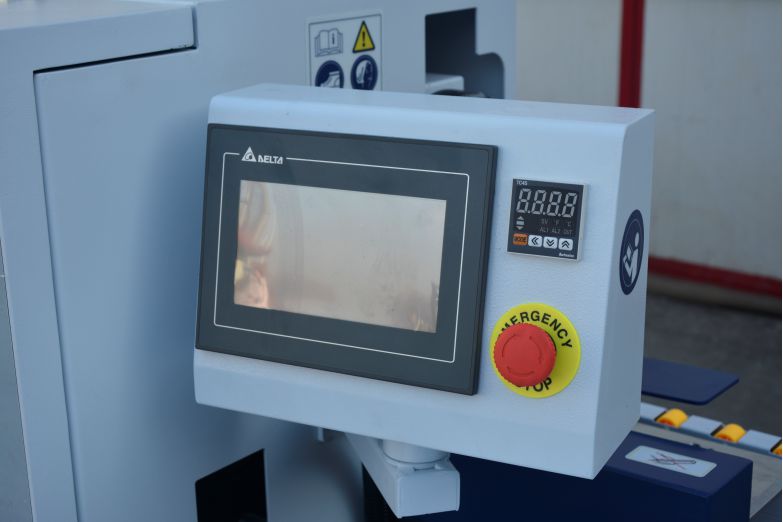

Touch screen - high-definition DELTA screen, fast response, no accidental touches.
Optimized speed - runs at 14m/min, ensuring high efficiency with a flawless finish.

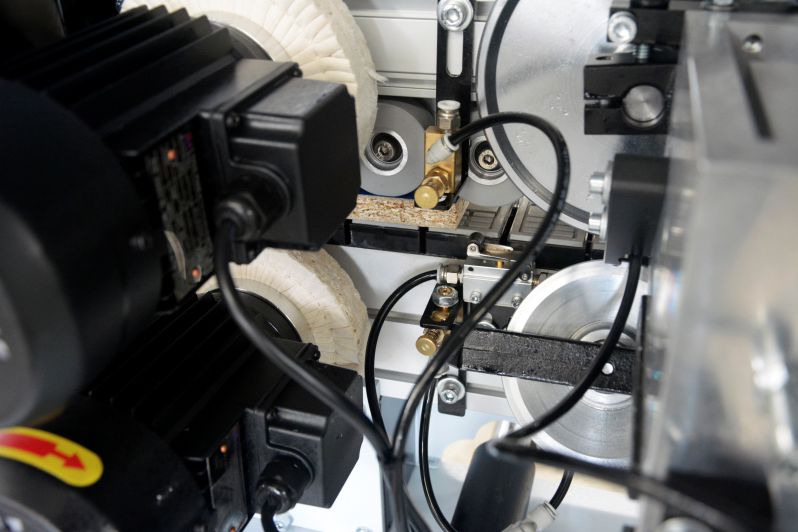

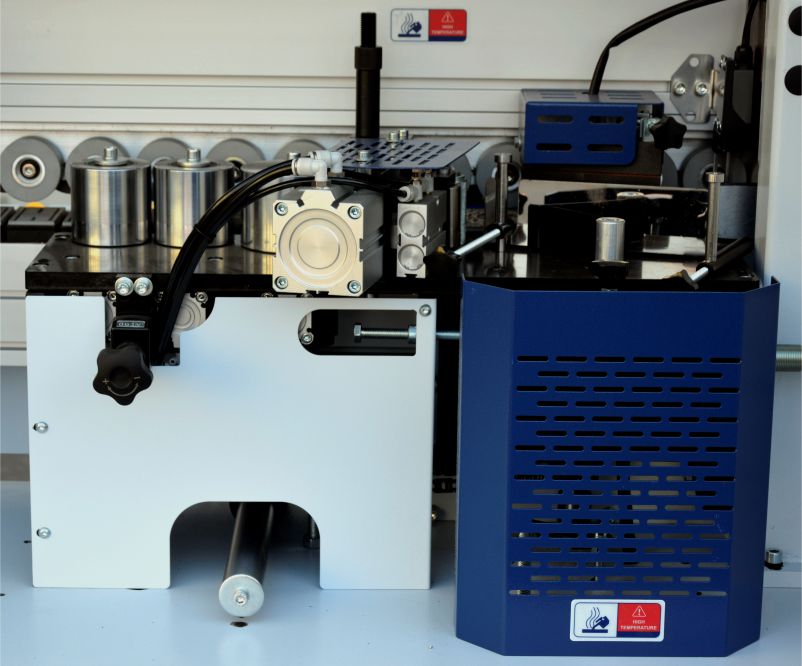

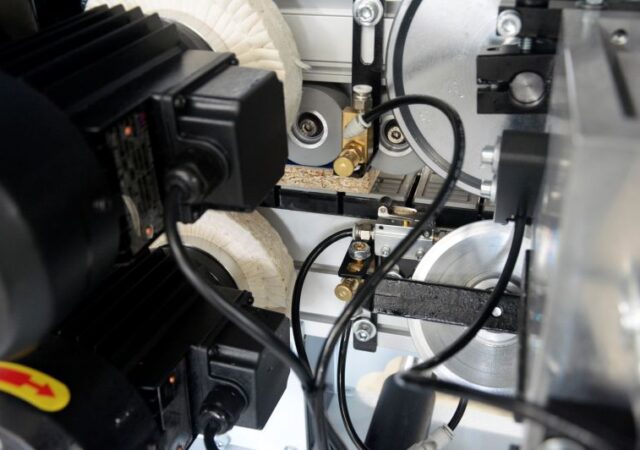

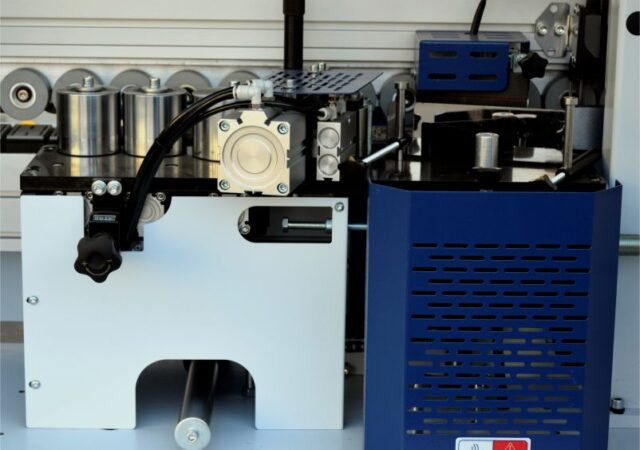

Post-cleaning (cleaning agent) spray removes glue residue for a perfect finish. Pressing & glue system - 3-roller system ensures precise glue application for thick & thin tapes.
Centralized lubrication - Auto oil injection reduces wear & extends machine life.
Automatic height adjustment for quick, precise setup.
