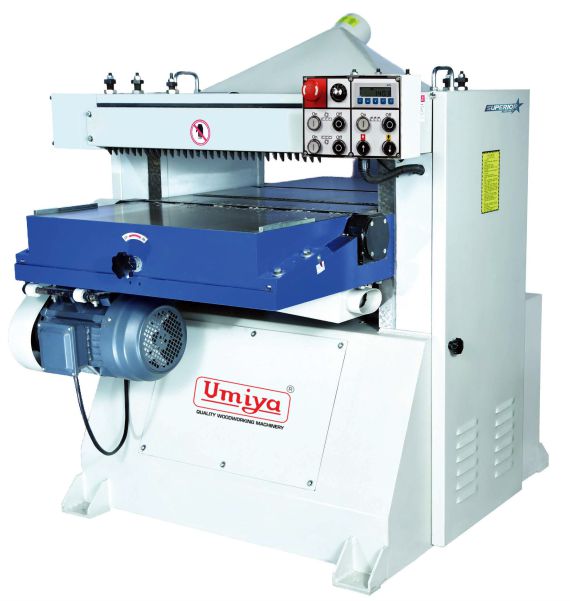

AUTOMATIC TWO SIDE THICKNESS PLANNER
AUTOMATIC TWO SIDE THICKNESS PLANNER is a high-performance woodworking machine designed for automatic simultaneous top and bottom thickness planning operations. Equipped with advanced automation technology, dual cutter heads, and durable industrial construction, it delivers uniform thickness, smooth finishing, and high production efficiency for modern woodworking industries.
Technical Data
| Description | U-MB206H |
|---|---|
| Max Working Width | 640mm |
| Max Working Thickness | 205mm |
| Min Working Thickness | 8mm |
| Min Planning Length | 220mm |
| Speed | Variable Frequency Drive |
| Shaft Diameter | Ø105mm |
| Cutter Block Speed | 5100rpm |
| Upper Cutter Block Roll Motor | 4kw |
| Bottom Cutter Block Roll Motor | 7.5kw |
| Feeding Motor | 1.1Kw |
| Lifting Motor | 180w |
| Dust Hood Diameter | Ø100mm |
| Overall Dimension | 1100 × 1350 × 1350mm |
Features
- Automatic two-side thickness planning system
- Simultaneous top and bottom surface processing
- Precision cutting with uniform thickness accuracy
- Durable industrial-grade machine construction
- Stable and efficient automatic feeding mechanism
- High-speed and reliable production capability
- User-friendly control and adjustment system
- Ideal for timber, furniture, and woodworking industries

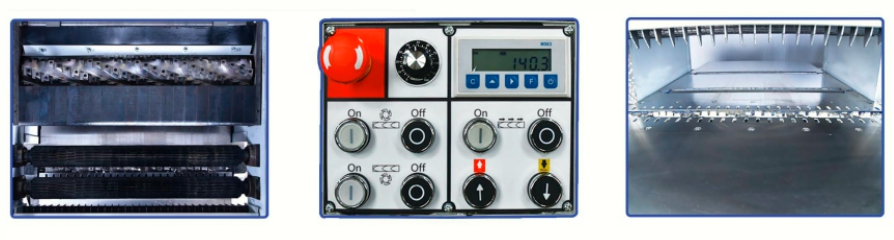

Machine Components
