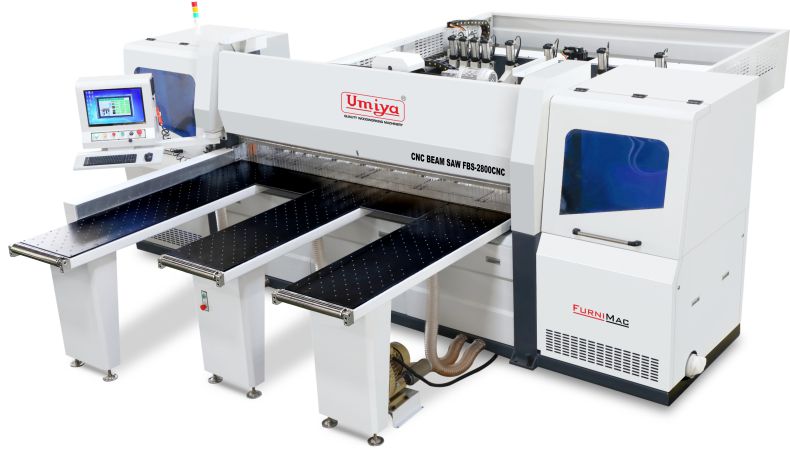

CNC BEAM SAW FBS-2800 CNC

CNC BEAM SAW FBS-2800 CNC is a high-precision panel cutting machine designed for automated woodworking operations. Equipped with advanced CNC technology, powerful cutting performance, and accurate positioning, it ensures fast, smooth, and efficient processing for modern furniture and panel manufacturing industries.

Technical Data

Model	FBS-2800CNC	FBS-3300CNC	FBS-4200CNC
Max cutting length	2800 mm	3200 mm	4200 mm
Max cutting width	2800 mm	3200 mm	4200 mm
Max cutting thickness	100 mm	100 mm	100 mm
Targeting	Automatic	Automatic	Automatic
Main saw motor power	25 hp	25 hp	25 hp
Main saw blade outer diameter	400–450 mm	400–450 mm	400–450 mm
Main saw shaft diameter	75 mm	75 mm	75 mm
Main saw speed	4100 rpm	4100 rpm	4100 rpm
Scoring saw motor power	2 hp	2 hp	2 hp
Scoring saw blade outer diameter	200 mm	200 mm	200 mm
Scoring saw shaft diameter	50 mm	50 mm	50 mm
Scoring saw speed	6200 rpm	6200 rpm	6200 rpm
Saw servo motor	3 hp	3 hp	3 hp
Feeding servo motor	3 hp	3 hp	3 hp
Feeding speed	0–100 m/min	0–100 m/min	0–100 m/min
Sawing speed	0–100 m/min	0–100 m/min	0–100 m/min
Return speed	0–120 m/min	0–120 m/min	0–120 m/min
High pressure blower	4 hp	4 hp	4 hp
Total power	34 hp	34 hp	34 hp
Machine footprint	5200 × 6500 × 2100 mm	5600 × 6500 × 2100 mm	6700 × 6500 × 2100 mm

Features

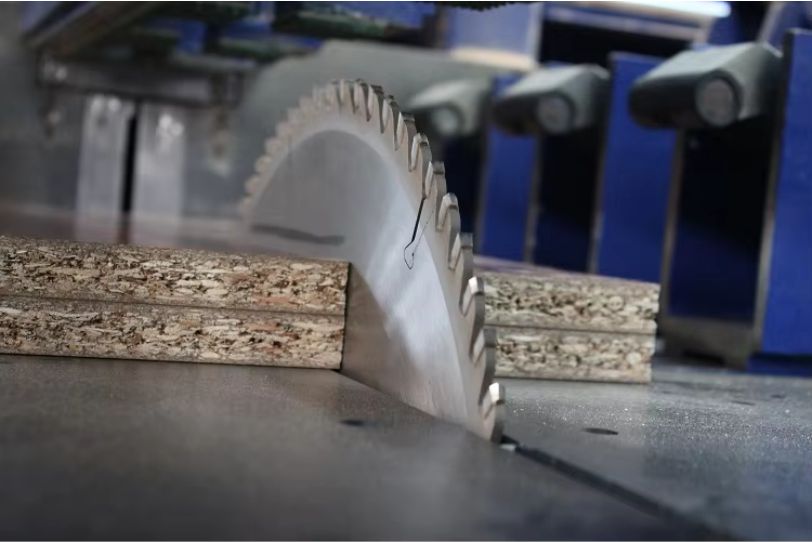

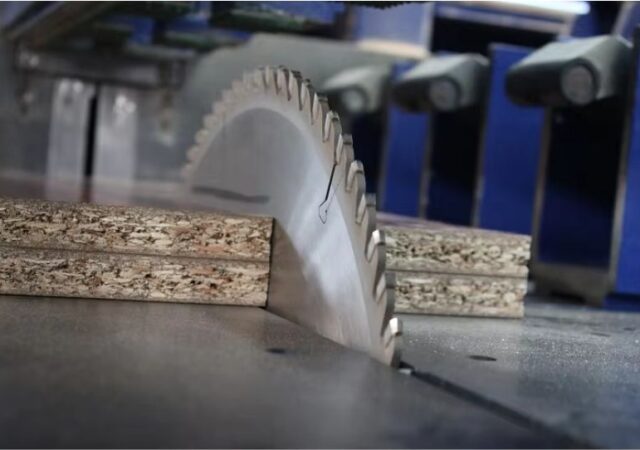

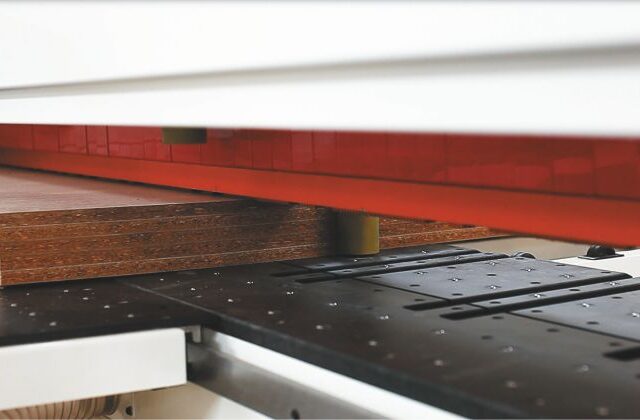

Servo-controlled blade lifting with automatic height adjustment as per board thickness.

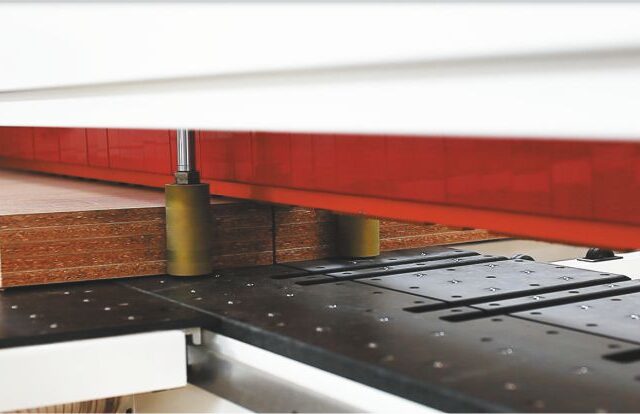

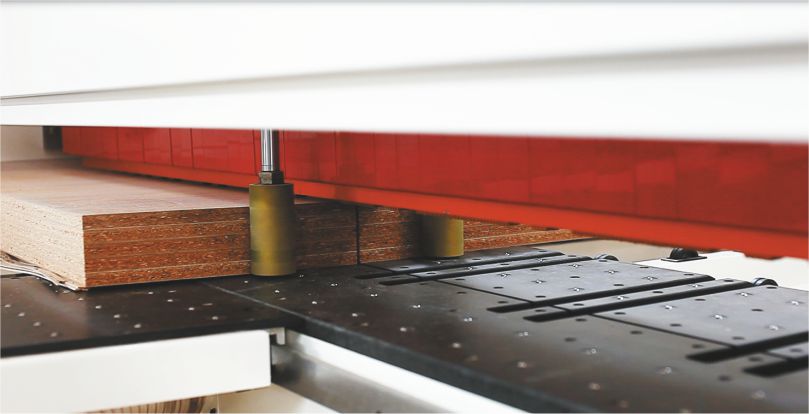

Automatic side alignment device ensuring diagonal accuracy.

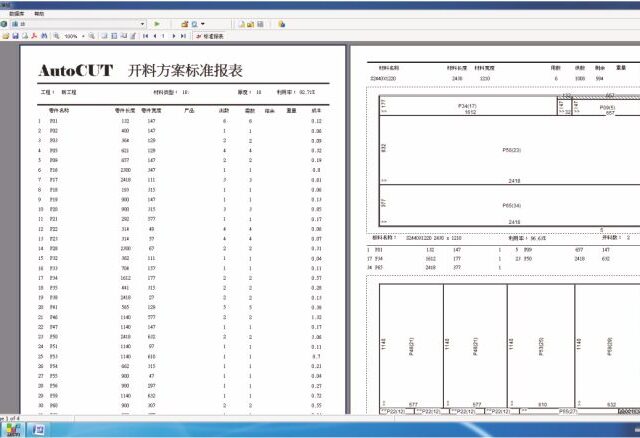

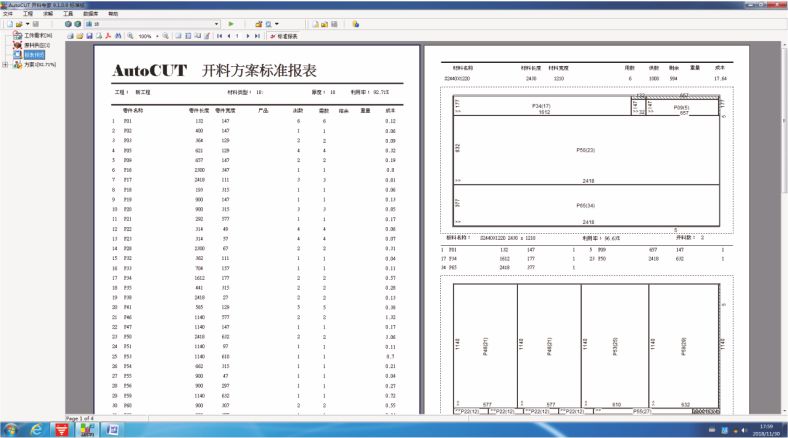

Cutting optimization software with automatic calculation, layout planning, and remains management to boost productivity, reduce costs, and maximize panel utilization.

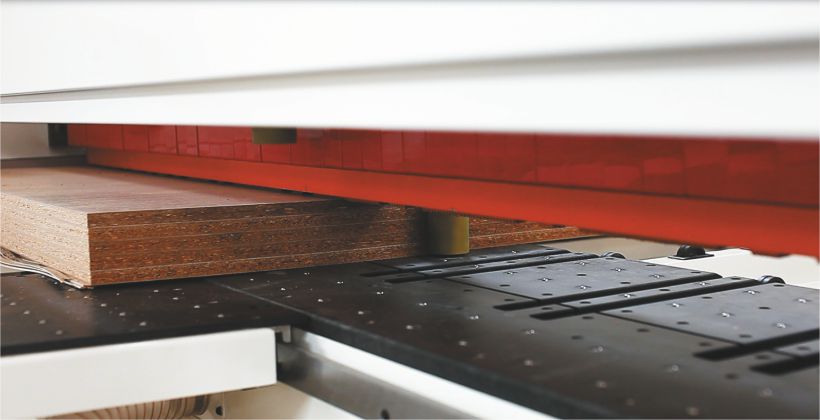

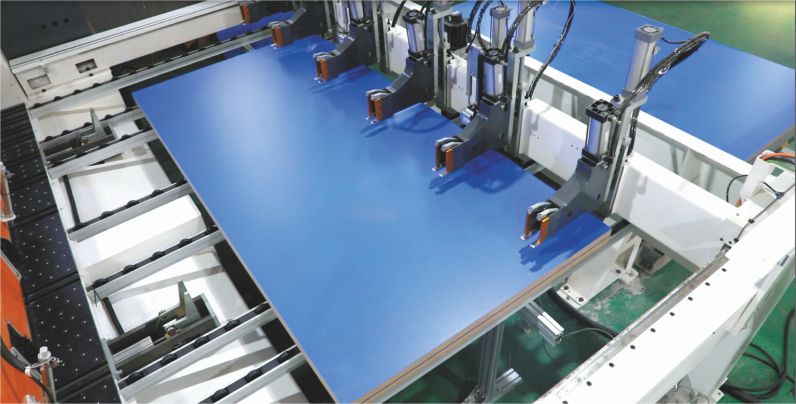

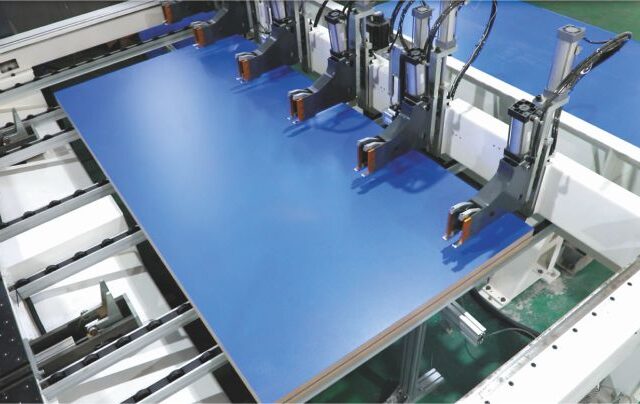

Servo-driven pneumatic two-finger clamping system with precise and adjustable positioning.
Air-floating steel-ball table for scratch-free, effortless material movement.
High-performance servo motor saw carriage drive for fast and precise cutting control.
Max forward speed up to 100m/min, backward speed up to 120m/min.
