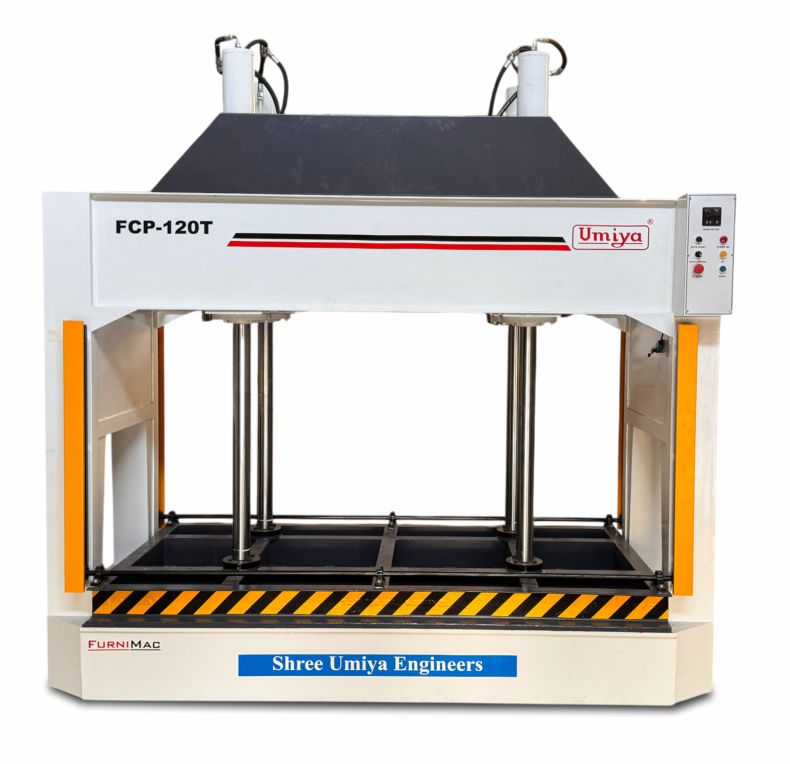

COLD PRESS FCP-120T

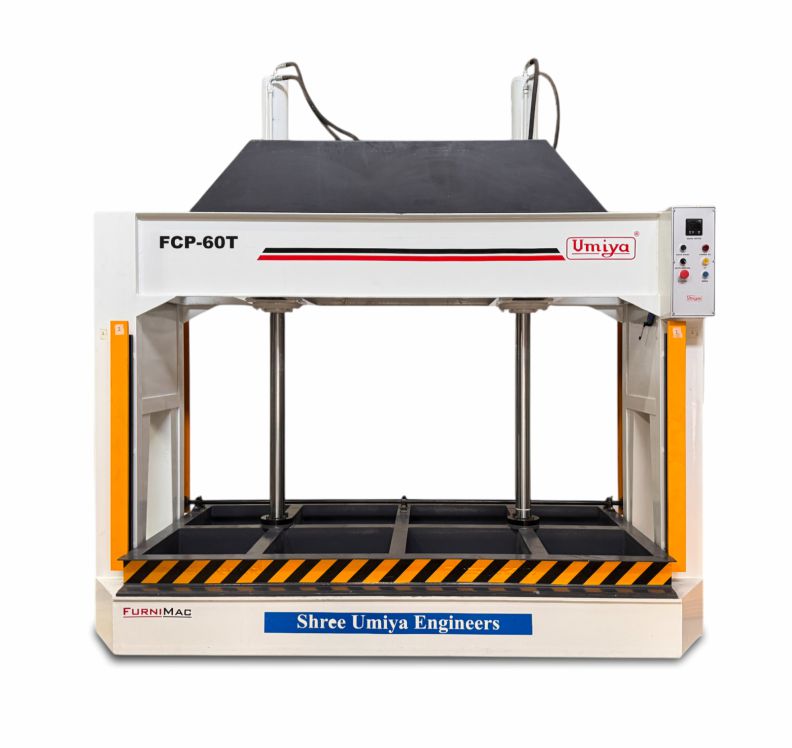

COLD PRESS FCP-60T
Technical Data
| Model | FCP-120T | FCP-60T |
|---|---|---|
| Working size | 2500 x 1300 mm | 2500 x 1300 mm |
| Max pressure | 120 ton | 60 ton |
| No of cylinders | 4 nos | 2 nos |
| Max opening | 1000 mm | 1000 mm |
| Cylinder stroke | 1000 mm | 1000 mm |
| Total power | 5 hp | 5 hp |
| Overall dimension | 3000*1300*3050 mm | 3000*1300*3050 mm |
Features
- Integrated with Digital Hydraulic meter with auto pressure control.
- Machine has two working modes: Auto Mode and Manual Mode.
- Designed to generate and handle uniform pressure.
- Operation cycle timer.
- All electrical parts are of standard company.
- All hydraulic parts are made with High Precision.
- Hydraulic cylinder with imported make seals.
