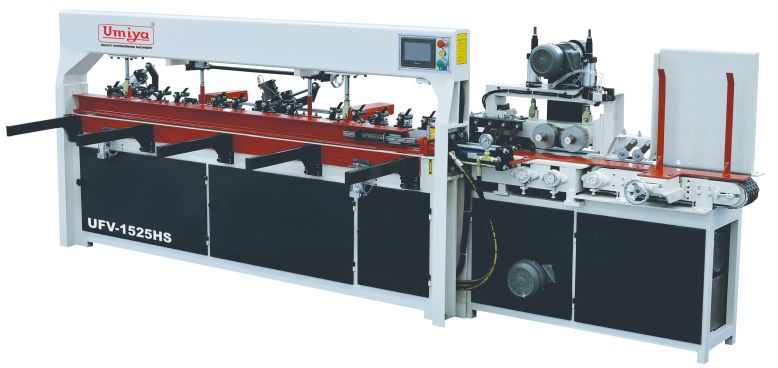

FINGER JOINT VICE (HIGH SPEED)
FINGER JOINT VICE (HIGH SPEED) is a high-performance woodworking machine designed for strong and accurate clamping of finger-jointed wood pieces during the bonding process. Equipped with high-speed hydraulic operation, durable construction, and efficient pressure control, it ensures strong joint bonding and smooth production for modern woodworking industries.
Technical Data
| Description | UFV-1525HS | UFV-1562HS |
|---|---|---|
| Max working length | 2500 mm | 6200 mm |
| Max working width | 90 mm | 90 mm |
| Max working thickness | 50 mm | 50 mm |
| Max jointing force | 300 kg | 7500 kg |
| Hydraulic power pack power | 4 kw (5.5 hp) | 4 kw (5.5 hp) |
| End cutting saw blade power | 2.2 kw (3 hp) | 2.2 kw (3 hp) |
| Feeding conveyor power | 1.5 kw (2 hp) | 1.5 kw (2 hp) |
| Total power | 7.5 kw (10.5 hp) | 7.5 kw (10.5 hp) |
Features
- VFD Control
- High-Speed Production
- Scoring Saw & Hogging Cutter
- 15HP Main Motor for shaper
- Touch Screen HMI
- Auto-Feeding Finger Joint Vice
- Application: Ideal for producing high-strength finger joint boards used in furniture, doors, and interior wood panels.
