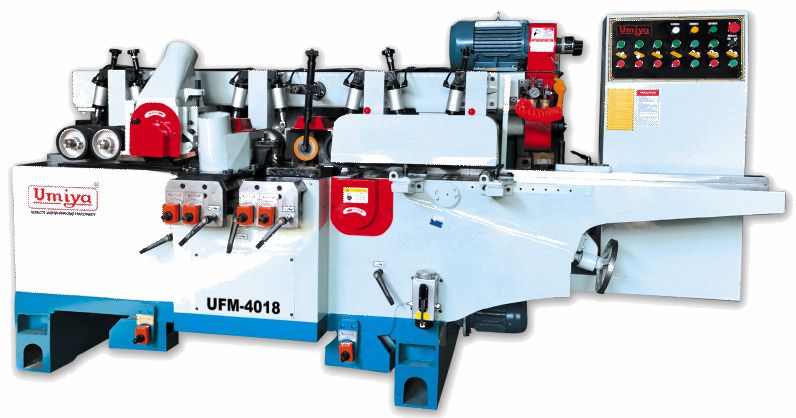

FOUR SIDE MOULDER (4 SPINDLE) OPEN BODY
FOUR SIDE MOULDER (4 SPINDLE) – OPEN BODY is a precision woodworking machine designed for efficient four-side planing, molding, and profiling operations. Featuring a durable open-body structure, 4 powerful spindles, and smooth feeding performance, it delivers accurate finishing and reliable production for modern woodworking and furniture manufacturing industries.
Technical Data
| TYPE | FOUR SIDE MOULDER (4 SPINDLE ) (OPEN BODY) |
|
|---|---|---|
| Description | UFM-4015H | UFM-4018H |
| Working Width | 20-150mm | 20-180mm |
| Working Thickness | 8-100mm | 8-100mm |
| Min Length | 250mm | 250mm |
| Feeding Speed | 12-30m/min | 12-28m/min |
| Spindle Speed | 6000 rpm | 6500 rpm |
| 1st Bottom Spindle Power | 4kw/ 5.5hp | 4kw/ 5.5hp |
| 1st Top Spindle Power | 5.5kw/ 7.5hp | 5.5kw/ 7.5hp |
| Right Spindle Power | 3kw/ 4hp | 4kw/ 5.5hp |
| Left Spindle Power | 3kw/ 4hp | 4kw/ 5.5hp |
| 2nd Bottom Spindle Power | - | - |
| Beam Lifting Power | 0.75kw/ 1hp | 0.75kw/ 1hp |
| Feeding Power | 2.2kw/ 3hp | 4kw/ 5.5hp |
| Overall Power | 18.45kw /25hp | 22.25kw /30.5 hp |
| 1st Bottom Cutter Diameter | 100mm | 125mm |
| Other Cutter Diameter | 90-125mm | 110-160mm |
Features
- 4-spindle precision molding system
- Open-body design for easy operation and maintenance
- Simultaneous four-side planing and profiling
- Smooth and accurate surface finishing
- Durable industrial-grade construction
- Stable and efficient feeding mechanism
- User-friendly control and adjustment system
- Ideal for furniture and woodworking industries
