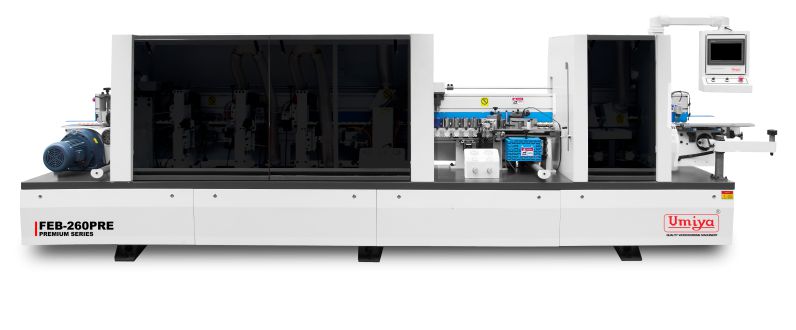

HIGH SPEED AUTO EDGE BANDER FEB-260PRE (PREMIUM SERIES)
HIGH SPEED AUTO EDGE BANDER FEB-260PRE (PREMIUM SERIES) is a premium automatic edge banding machine designed for precise edge finishing, smooth operation, and efficient woodworking performance. With advanced automation, durable construction, and superior bonding quality, it delivers clean and professional finishing for modern furniture and modular woodworking applications.
Features
- High-speed operation: Max feeding speed of 25m/min with stability.
- Smart touch PLC panel: User-friendly control system.

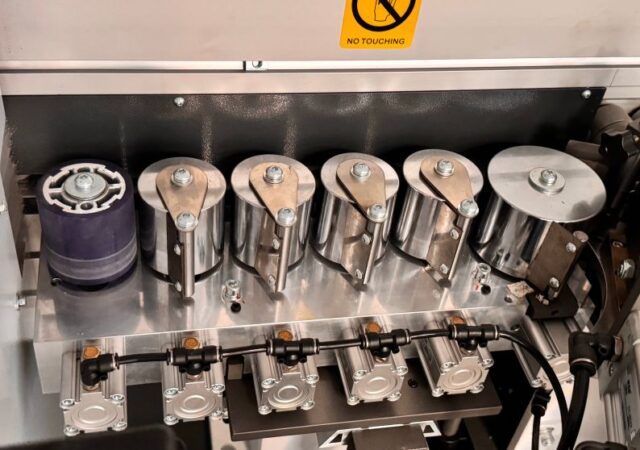

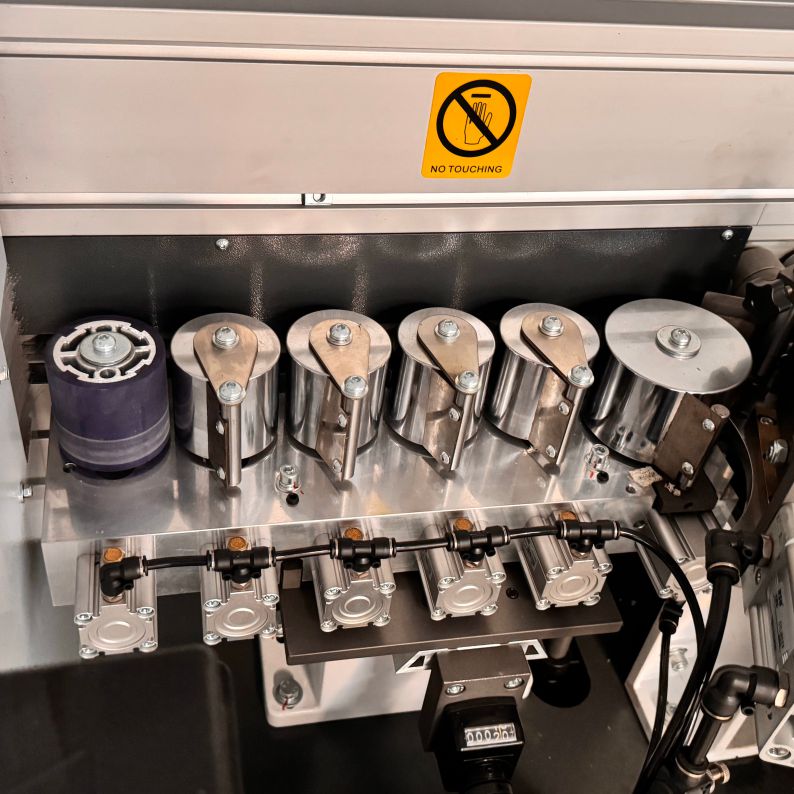

- 6 pressure rollers with scapers delivers strong and uniform pressing.
- Pre-heating system removes moisture from panel for better edge banding.

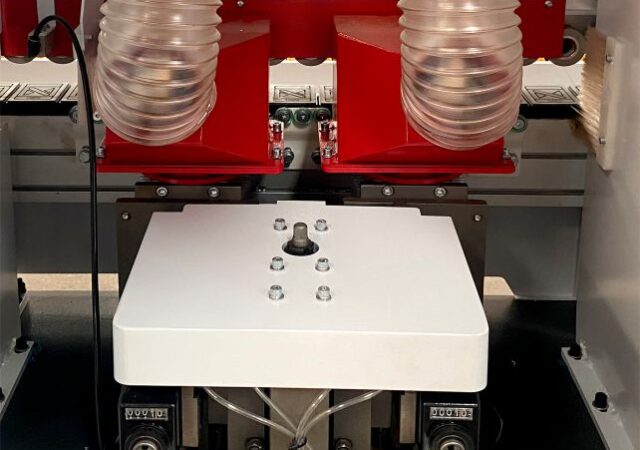

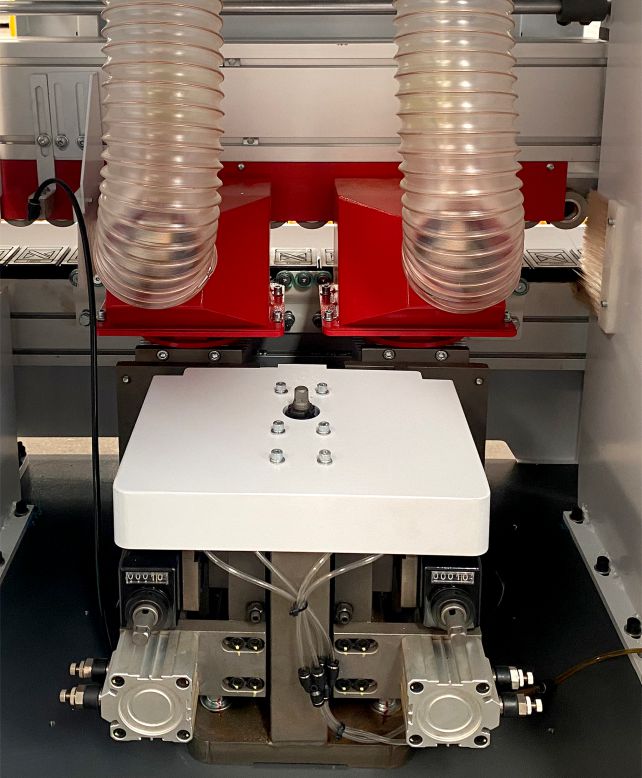

- Diamond cutters for pre-milling unit to ensure precision.

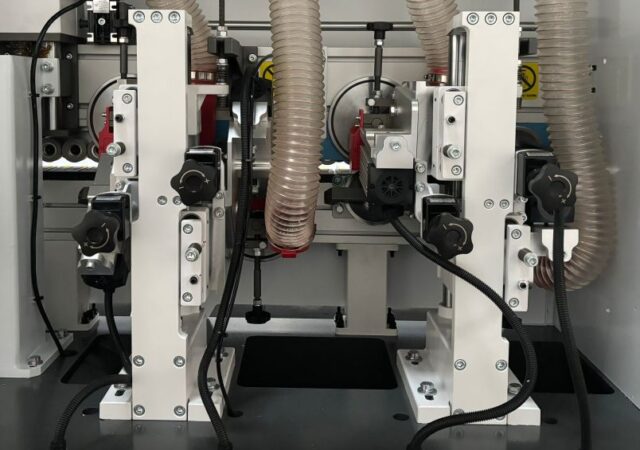

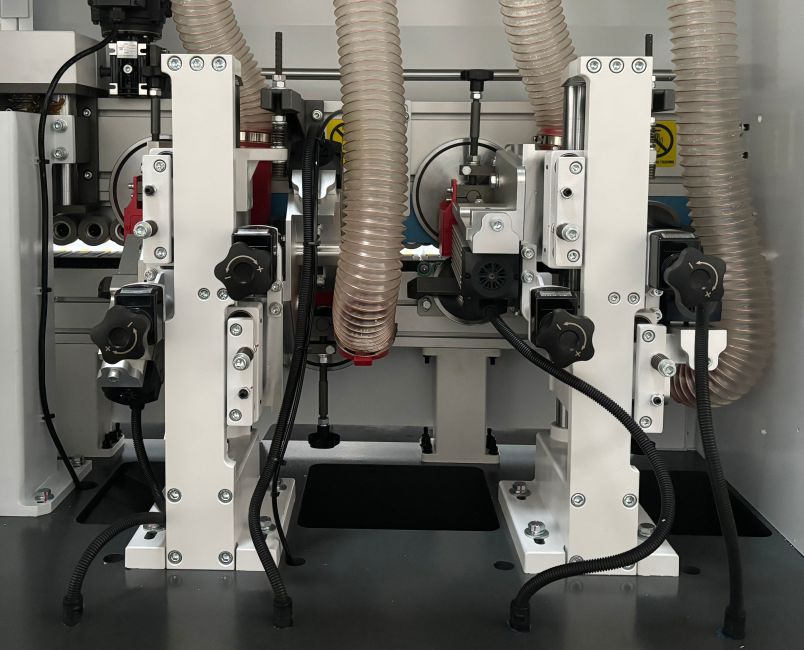

- Rough & fine trimming unit ensures flawless edge finishing.

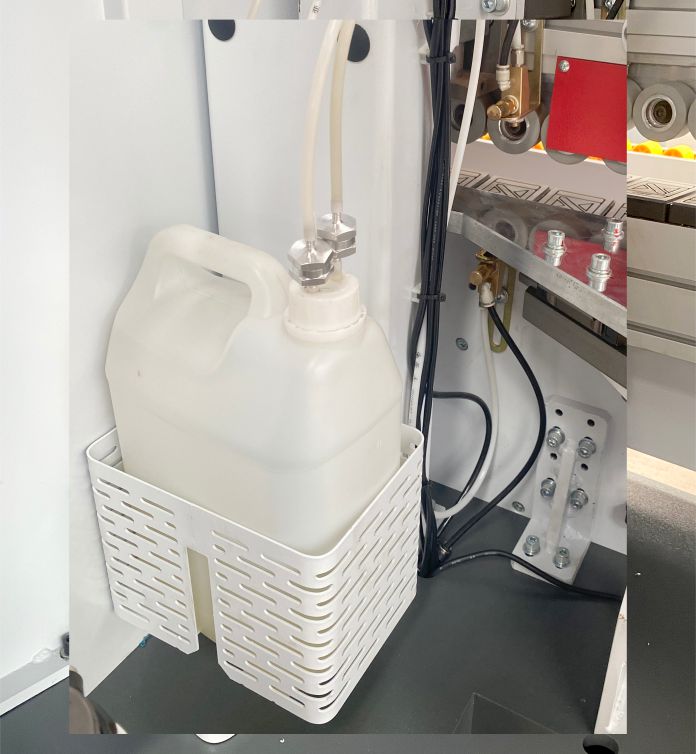

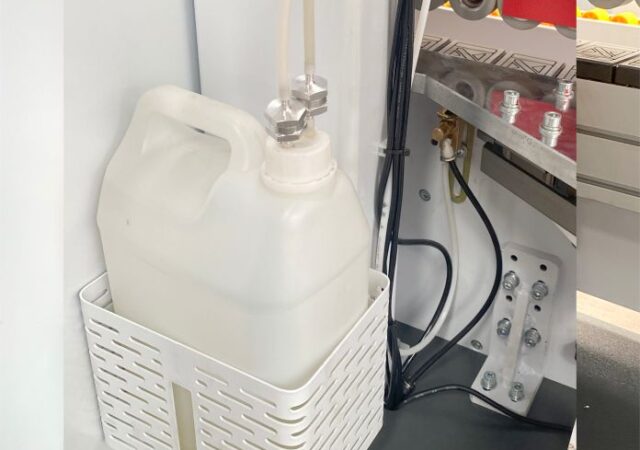

- Pre-isolation (seperating agent) & post-cleaning (cleaning agent) spray removes glue residue for a perfect finish.
- Encoder system provides precise speed and position control, ensuring smooth operation and accurate tape measurement.
- Centralized lubrication ensures smooth and efficient functioning.
- Motorized pressure beam lifting enables effortless adjustments.

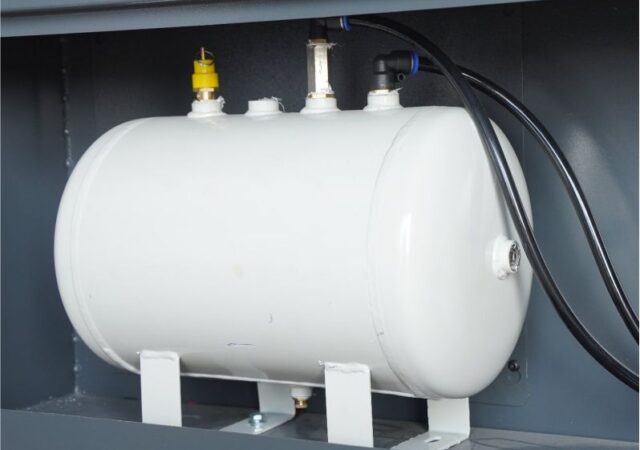

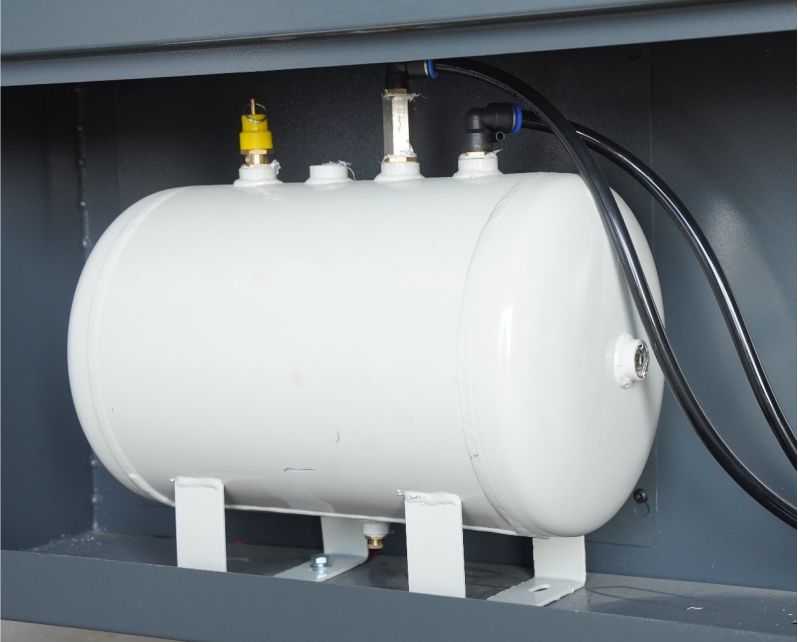

- Air pressure safety tank enhances operational safety.
Technical Specifications
| Model | FEB-908QMPUR | FEB-908QMEV | FEB-480PRE.QM | FEB-560PRE | FEB-460PRE | FEB-460 | FEB-260PRE | FEB-260 |
|---|---|---|---|---|---|---|---|---|
| Edge material thickness | 0.4–3 mm | 0.4–3 mm | 0.4–3 mm | 0.4–3 mm | 0.4–3 mm | 0.4–3 mm | 0.4–3 mm | 0.4–3 mm |
| Board thickness | 10–60 mm | 10–60 mm | 10–60 mm | 10–60 mm | 10–60 mm | 10–60 mm | 10–60 mm | 10–60 mm |
| Min panel length | ≥ 120 mm | ≥ 120 mm | ≥ 120 mm | ≥ 120 mm | ≥ 120 mm | ≥ 120 mm | ≥ 120 mm | ≥ 120 mm |
| Min panel width | ≥ 60 mm | ≥ 60 mm | ≥ 60 mm | ≥ 60 mm | ≥ 60 mm | ≥ 60 mm | ≥ 60 mm | ≥ 60 mm |
| Total air pressure | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
| Feeding speed | 15–25 m/min | 15–25 m/min | 15–25 m/min | 15–25 m/min | 15–25 m/min | 15–25 m/min | 15–25 m/min | 15–25 m/min |
| Machine power | 46.8 hp | 34 hp | 22.5 hp | 28 hp | 22.5 hp | 16 hp | 21 hp | 11 hp |
| Packing size | 8790 × 970 × 1800 mm | 8790 × 970 × 1800 mm | 7100 × 970 × 1800 mm | 7300 × 970 × 1800 mm | 6800 × 970 × 1800 mm | 6000 × 970 × 1800 mm | 5600 × 970 × 1800 mm | 4200 × 970 × 1800 mm |
