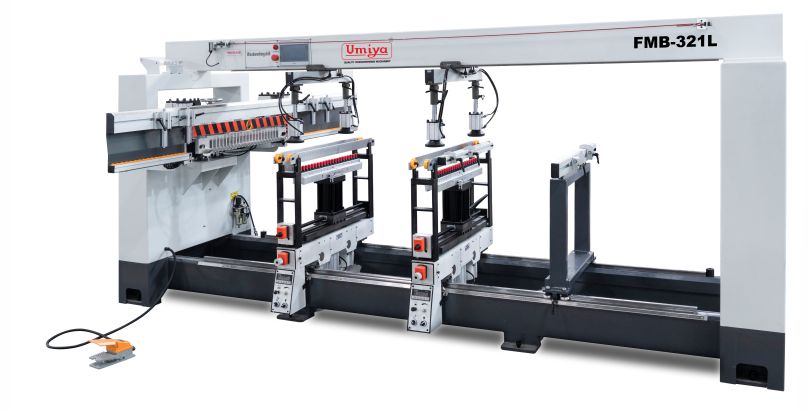

MULTI BORING MACHINE FMB-321L
Technical Data
| Model | FMB-321L | FMB-321XL |
|---|---|---|
| Max hole diameter | 35 mm (single drill bit) 13 mm (multi drill bit) |
35 mm (single drill bit) 13 mm (multi drill bit) |
| Max drilling depth | 60 mm | 60 mm |
| Drill fitting diameter | 10 mm | 10 mm |
| Max processing hole distance (L*B) | 2440 x 640 mm | 2800 x 640 mm |
| Total power | 6 hp | 6 hp |
| Spindle speed | 2840 rpm | 2840 rpm |
| Total number of shafts | 21*3 = 63 | 21*3 = 63 |
| Overall dimensions | 3400*2500*1560 mm | 3800*2500*1560 mm |
Features
- High-speed multi-hole drilling performance
- Accurate and precise boring operation
- Heavy-duty industrial construction
- Smooth and stable machine operation
- Easy adjustment for different drilling requirements
- Suitable for modular furniture and cabinet production
- Efficient productivity with low maintenance
- User-friendly control system
