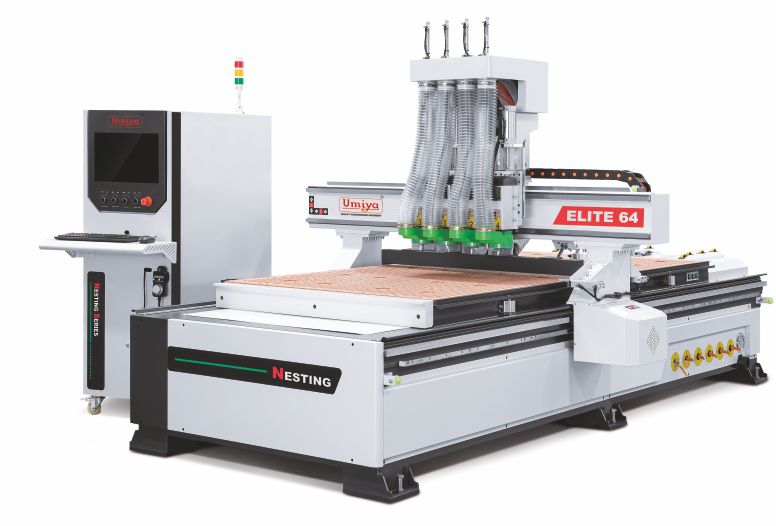

NESTING CNC ROUTER ELITE 64
Technical Data
| Model | ELITE 64 |
|---|---|
| Control system | Taiwan LNC system |
| Effective working size | 1220 x 2800 x 200 mm |
| Maximum feed height | 70 mm |
| Main spindle power | Spindle 6 kw * 4, 18000 rpm (optional 24000 rpm) |
| Z axis parts | 1kw servo motor with holding brake |
| Engine motor group | 1.5 kw servo motor |
| Working table structure | High quality thickened ABS |
| Table | Vacuum table with 6 sub region |
| Vacuum power | 7.5 kw water cooled high power vacuum pump |
| Unloading function | Double air automatic pushing |
| Working speed | Max. 80000 mm/min |
| Common command | G code |
Features
- High-speed precision cutting and routing performance
- Advanced CNC control system for accurate processing
- Efficient nesting, drilling, grooving, and cutting operations
- Heavy-duty industrial machine structure for stability
- Smooth and reliable high-speed operation
- Strong vacuum table for secure panel holding
- High-precision linear rails and helical rack system
Testimonial
Everything You Need to Know
Explore important information about our products, services, technical support, and woodworking machinery solutions.
We offer panel saws, edge banders, CNC routers, beam saws, boring machines, cold press, hot press, and other advanced woodworking machinery.
Yes, our machines are specially designed for modular furniture, cabinet production, panel processing, and industrial woodworking applications.
Yes, we provide machine installation, operational guidance, and technical support to ensure smooth performance.
Our machines can process MDF, plywood, particle board, solid wood, laminate sheets, PVC edge tapes, and other woodworking materials.
