SIX SIDE CNC BORING FCB-612
Technical Data
| Model | FCB-612 |
|---|---|
| Spindle speed | 18000 rpm |
| Upper vertical drill | 9 |
| Horizontal drill | X-Direction (2+2), Y-Direction (2+2), |
| Down vertical drill | 9 |
| Top Spindle Power | 3.5 kw |
| Bottom Spindle Power | 3.5 kw |
| Working length | 150-2800 mm |
| Working width | 40-1220 mm |
| Working thickness | 10-55 mm |
| Overall dimensions | 3800*2200*2280 mm |
| Total power | 18 kw |
Features
- Large Processing Capacity - Handles workpieces up to 1250*2800 mm.
- Seamless Software Integration - Connects with various industry design software,
- Barcode Scanning - Automatically loads NC programs for efficient processing.
- High Productivity - Single-operator setup can process 1,000+ workpieces per day.
- One-Step Processing -Full through-hole punching, drilling, and slotting in a single run.
- User-Friendly System - Sanweijia processing system with graphic input interface for quick operation.
- Precision & Protection - Side leaning device and air-floating work surface prevent plate scratches.

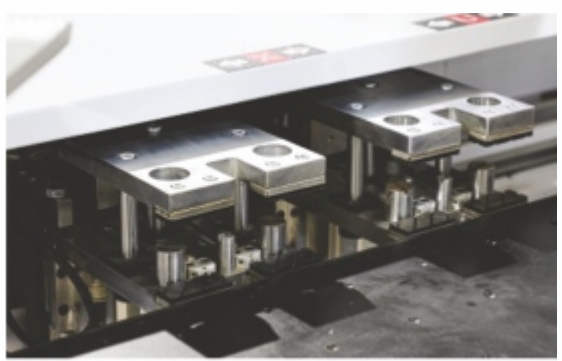

- Advanced Gripping System - Independent servo-controlled double grippers for stable handling.
- Smart Automation - Optional automatic discharging system with conveyor rollers or side discharge.
Machine Components
